Commercial Production Stock SKU: FPC-SET-LRG (Box FPC-10707 / Lid FPC-10708)
Fiber Box Large (26L / 27.5 Qt)

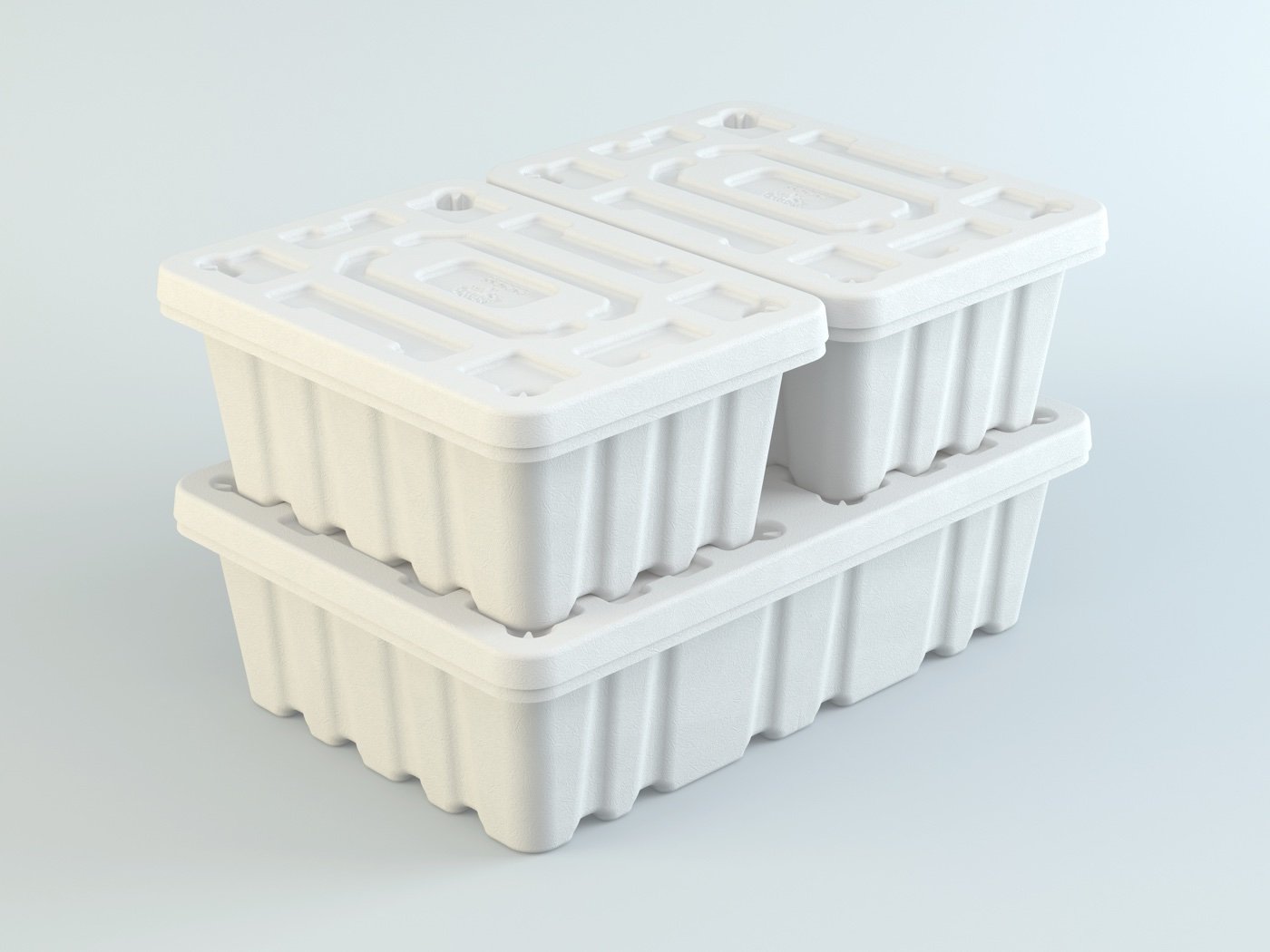

Modular 2-on-1 Footprint: Large 26L base unit (bottom) with 2 Medium 11L boxes interlocked on top 100% Virgin FSC Cellulose
verified Material & Tooling Integrity (PAPACKS rev6)

Thermoformed from 100% virgin FSC-certified cellulose fiber (FSC Mix SCS-COC-005171, excluding recycled MOSH/MOAH mineral oil contamination) with internal wet-end AKD sizing and zero plastic films or liners. Tested for direct food contact (Eurofins Test Report AR-26-JR-004078-02) and 85% PAP 21 paper recovery yield (cyclos-HTP Certificate No. 2782-2026-005174).

Replaces 20 to 25 lb EPS Coolers

Fiber Box Large (26L / 27.5 Qt)

Heavy-Duty Master Cold-Chain Shipper for Whole Fish & Bulk Freight

We engineered the Large 26L format (Box FPC-10707 / Lid FPC-10708) for high-capacity perishables: whole commercial finfish (approx. 10 kg fish reference fill), bulk shellfish, sub-primal meat cuts, and regional refrigerated distribution. Designed on a modular 2-on-1 footprint with our Medium box, it nests 120 boxes per HACCP pallet (360 lids/pallet) and supports 4-high recommended commercial pallet stacking (tested at 48 kg top-load on a 4-box stack with 5 to 6 kg of ice per box for 10+ days in 0 to 2 °C cold storage, and up to 100 kg static proof load).

Usable Volume 26.0 Liters 27.5 Quarts (~6.9 Gal)
Reference Fill Approx. 10 kg Fish 0 to 2 °C cold chain w/ ice
Pallet Density 120 Boxes / PL 360 Lids / PL (5:1 Nested)
Commercial Stacking 4-High Stacking 48 kg 10+ day / 100 kg static
analytics PAPACKS Oct 2026 rev6 Datasheet Specifications

Engineering Datasheet & Logistics Parameters

Exact dimensions, weights, pallet counts, and third-party compliance certifications for Fiber Box Large (26L / 27.5 Qt).

1. Dimensional Geometry & Capacity

PAPACKS rev6
Outer Box Dimensions (OD):
591 × 391 × 170 mm (23.3" × 15.4" × 6.7")
Inner Box Dimensions (ID):
505 × 315 × 150 mm (19.9" × 12.4" × 5.9")
Outer Lid Dimensions (OD):
Lid OD: 597 × 397 × 27 mm (Lid OD: 23.5" × 15.6" × 1.1")
Usable Volume:
26.0 Liters / 27.5 Quarts (~6.9 Gal)
Reference Fill:
Approx. 10.0 kg fish reference fill (22.0 lbs)
Assembly Format:
2-Piece Rigid (Base + Friction Lid)

2. Weight Breakdown & Stacking Ratings

Tare & Stacking
Total Set Weight (Box + Lid):
1,430 g (3.15 lbs)
Box Weight:
950 g (2.09 lbs)
Lid Weight:
480 g (1.06 lbs)
Recommended Stacking & Proof Load:
4-high recommended commercial pallet stacking (tested at 48 kg top-load on a 4-box stack with 5 to 6 kg ice per box for 10+ days in 0 to 2 °C cold storage; up to 100 kg static proof load)
Commercial Pallet Stacking:
4-High recommended commercial pallet stacking in 0 to 2 °C cold storage
Sizing Chemistry:
Internal wet-end AKD sizing (zero plastic films or liners)

3. Freight, Warehouse & Pallet Density

5:1 Nested

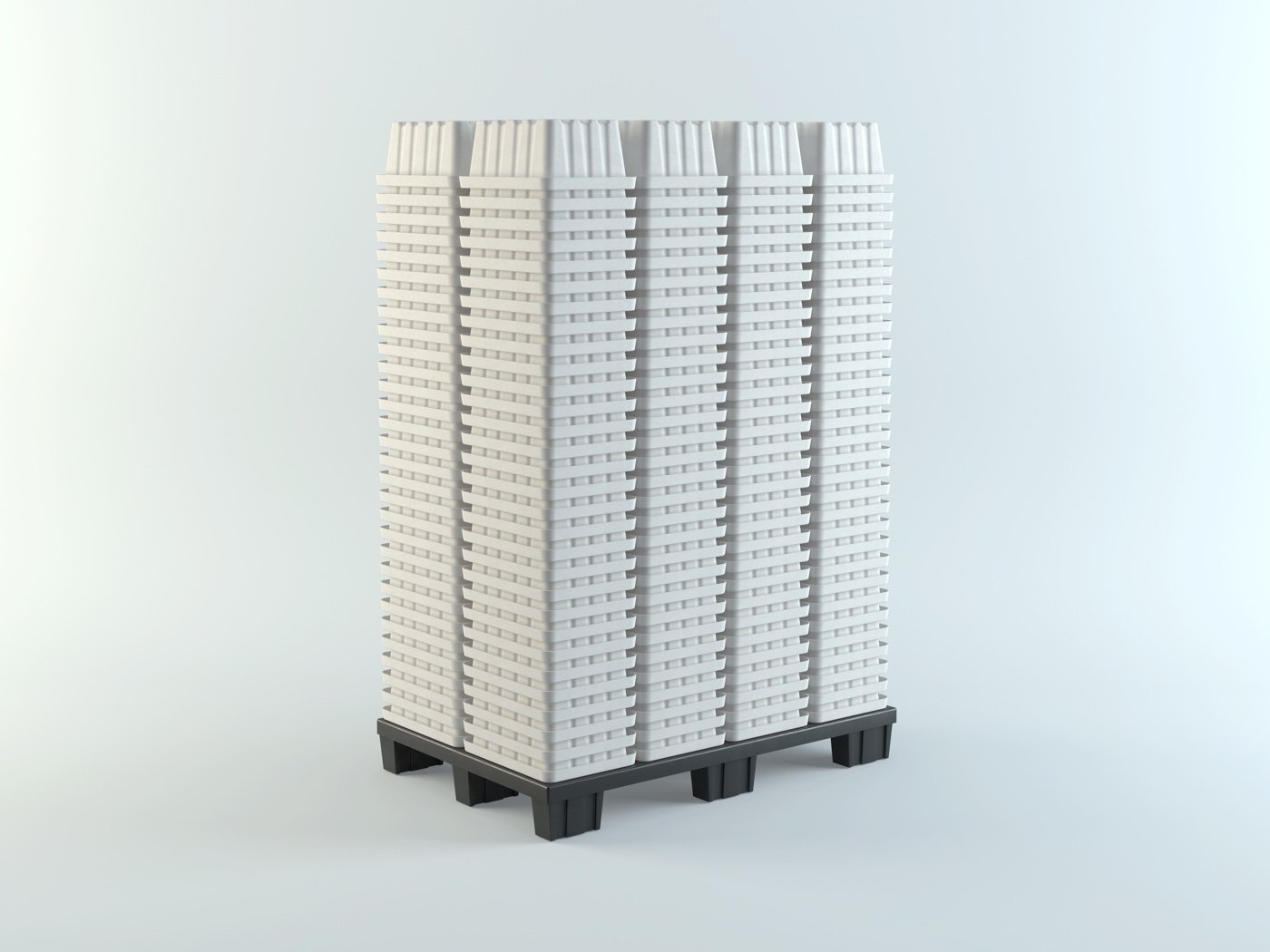

Nested Boxes per HACCP Pallet:
120 Boxes
Nested Lids per HACCP Pallet:
360 Lids
Pallet Pattern:
4 boxes/layer × 30 nested layers (120 boxes/pallet; 360 lids/pallet)
Warehouse Floor Space Saved:
80% vs Rigid EPS Air-Blocks
Inbound Trailer Capacity:
3,000 to 3,120 nested sets / trailer
Freight Displacement:
1 inbound truckload replaces 5 trucks of rigid EPS coolers

4. Compliance & Circularity Certifications

PAP 21 • 85% Recovery
Paper Recycling Stream:
PAP 21 Paper Stream Recyclable (85% fiber recovery yield)
Recyclability Certificate:
cyclos-HTP Certificate No. 2782-2026-005174 (EN 643 grade 1.01.00)
Sizing & PFAS Compliance:
Internal Wet-End AKD Sizing (no intentionally added PFAS, per supplier declarations)
Direct Food Contact:
Eurofins Test Report AR-26-JR-004078-02 (Regulation (EC) 1935/2004, BfR XXXVI, German LFGB, and US FDA 21 CFR 176.170)
Base Fiber Sourcing:
100% Virgin FSC Cellulose Fiber (FSC Mix SCS-COC-005171, excluding recycled MOSH/MOAH mineral oil contamination)
verified_user Audited Laboratory Reports & Dossiers

Download Technical Specifications & Regulatory Clearances

Official third-party laboratory reports and recyclability certificates for food contact and cold-chain qualification.

PDF Specs picture_as_pdf

Technical Datasheet (Large 26L • rev6)

Fiber_Box_Large_26L_Engineering_Datasheet.pdf

Eurofins Tested picture_as_pdf

Eurofins Food-Contact Test Report (AR-26-JR-004078-02)

Eurofins_FDA_Food_Contact_Clearance.pdf

PAP 21 • 85% picture_as_pdf

cyclos-HTP Recyclability Certificate (2782-2026-005174 • 85%, EU paper stream)

cyclos-HTP_Recyclability_Certificate_2782-2026-005174.pdf

route Validated Operating Lanes

How Fiber Box Large 26L Performs Across Operating Lanes

Cooling comes from the ice charge and refrigerated environment, while Fiber Box Large (26L / 27.5 Qt) provides rigid, moisture-resistant containment without EPS foam waste.

local_shipping

Primary Lane: Active 0 to 2 °C Cold Chain

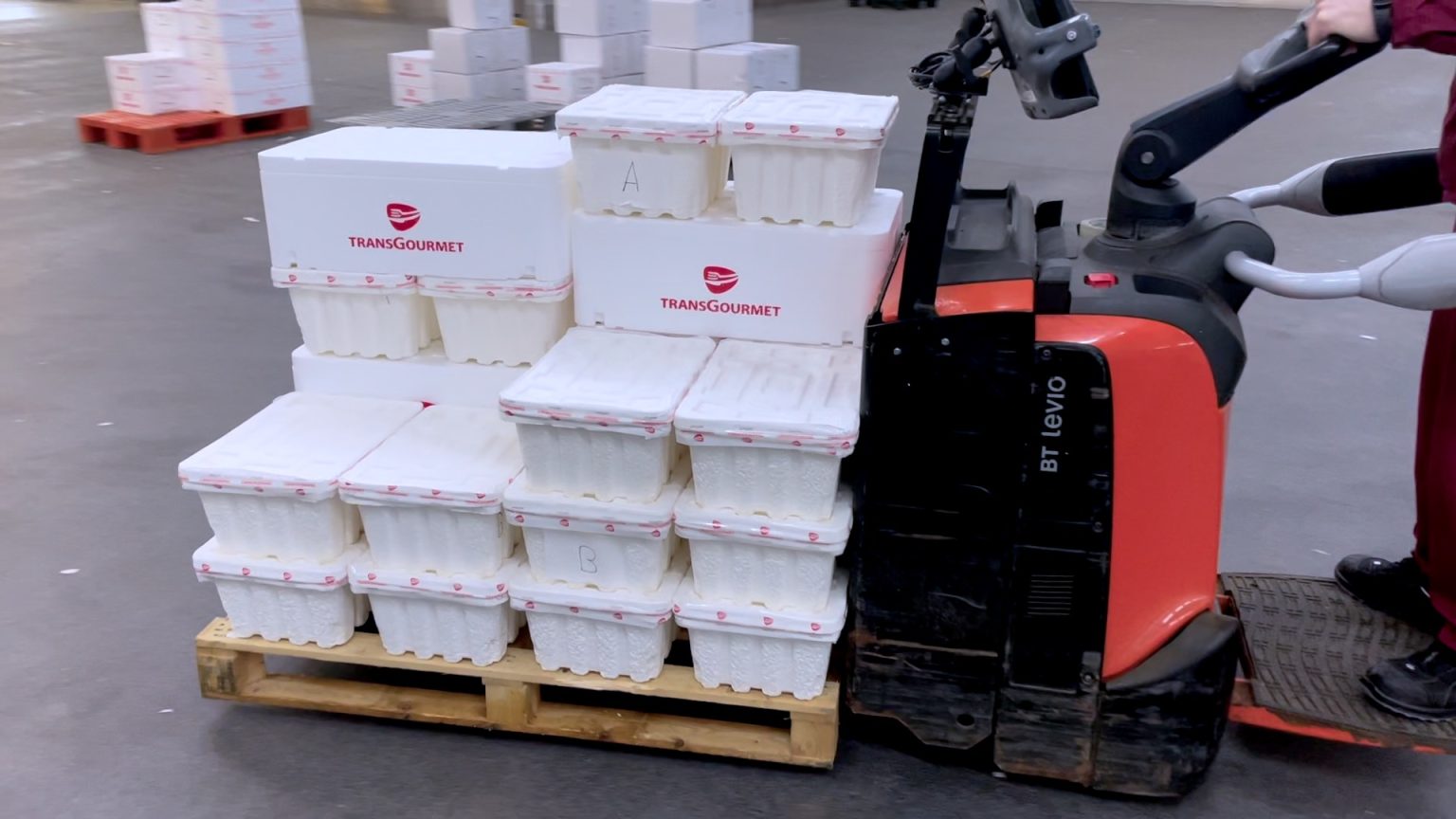

5 to 10+ days in 0 to 2 °C (32 to 36 °F) active refrigerated cold chain at 90 to 95% RH packed with crushed/flake ice (validated commercially with TransGourmet Seafood, Bremerhaven, Feb 2026)

Validated with TransGourmet Seafood (Bremerhaven, Feb 2026)
inventory_2

Secondary Lane: Short-Haul Ambient

19.25 to 20.75 hours <= 4.0 °C (39.2 °F) FDA Seafood HACCP in 72 to 77 °F (22 to 25 °C) ambient with a 2.3:1 ice-to-payload ratio (internal US bench test RENW-TR-2026-004). Cooling comes from the ice charge and refrigerated environment while the box provides rigid, moisture-resistant containment.

2.3:1 Ice-to-Payload Ratio (RENW-TR-2026-004)
ac_unit

Gel-Pack & Dry-Ice Compatibility

Compatible with frozen gel packs and dry ice blocks or pellets without brittle foam shattering

Zero brittle foam bead shattering
Alternative Standard Format

Looking for Fiber Box Medium 11L?

Standard stock SKU: FPC-SET-MED (11.0 Liters / 11.6 Qt). Standardized for 2-on-1 modular pallet stacking.
